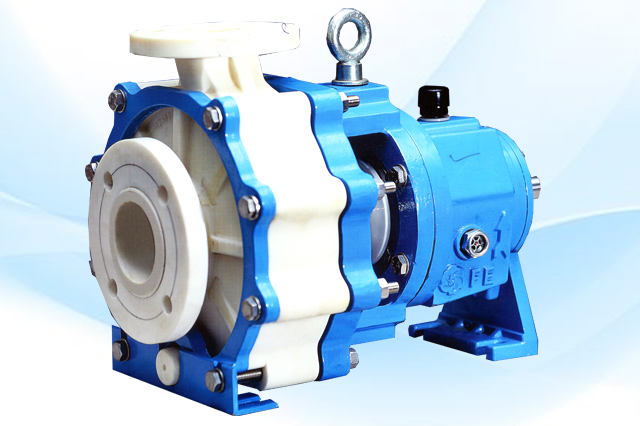

Polypropylene Chemical Process Pumps ( PP Pumps )
We are Authorized Dealer, Supplier of Polypropylene Chemical Process Pumps ( PP Pumps ) and our setup is situated in Pune, Maharashtra, India. Majorly we serve customers from African Countries like Egypt, Algeria, Ghana, Ethiopia, Nigeria, Congo, Uganda, Kenya, Sudan, Tanzania, Zambia, Angola, Algeria, Zimbabwe, Namibia, Mozambique, Gulf Contries like South Africa, Saudi Arabia, Doha, Bahrain, Kuwait, Oman, Iran, Turkey, Yemen, Lebanon, Mauritius & Asian Countries like Sri Lanka, Bangladesh.

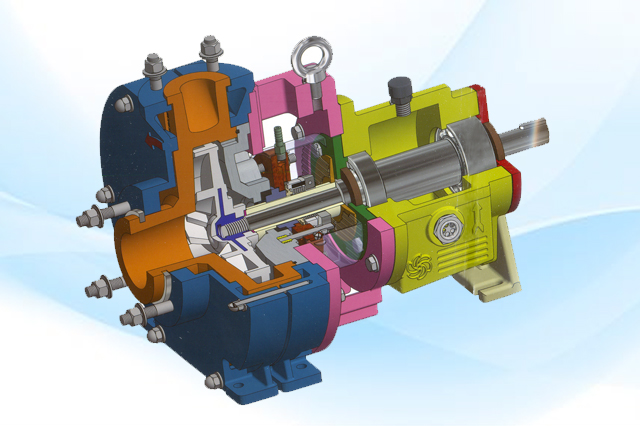

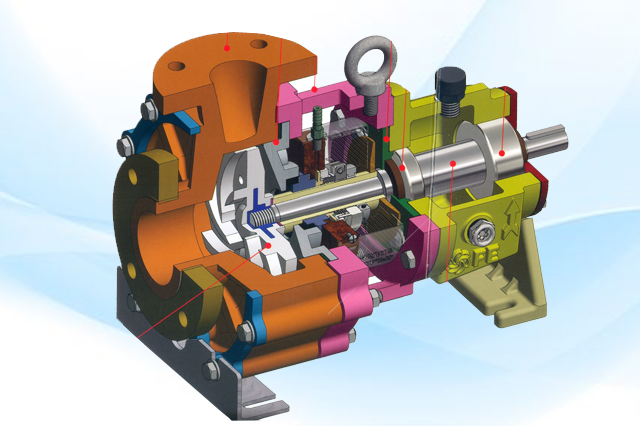

PLM series pumps are energy efficient complete ISO 2858 standard design, injection moulded, horizontal, back-pull out single stage end suction centrifugal pumps to provide optimum pumping solutions with reduced life cycle costs for all chemical applications.
Technical Data
| Operaing Frequency | 50Hz | 60Hz |
| Capacity [Q] up to | 500 m3/hr ( 2200 US gpm) | 3100 US gpm (700 m3/hr) |
| Head [H] up to | 120mts (394 ft) | 492 ft (150mts) |
| Motor Power [P] up to | 150HP ( 115 kW) | 170HP (130 kW) |
| Viscosity up to | 150 mPas (cP) | |
| Suction Lift up to | 8 m ( 26 ft ) with priming chamber * | |
| Maximum Working Pressure | 12 bar (175 psi) | |
| Maximum Specific Gravity [SG] | 1.8 - 3 | |
| Minimum Continuous Flow | 3 m3/hr (13 US gpm) | |
| Maximum Temperature | PP - H : 820C (1800F), GFRPP : 900C (1940F) | |
| Suction & Delivery Connection | ANSI B16.5 - Class 150 , DIN ND 10 | |
| Shaft Seal | Single (TB / TBR), DROTT, IMS, DMS & SS | |
| Bearing | Rolling Element Bearing | |
| Lubrication | Grease / Oil | |
| Motor Compatibility | IS 1231, IEC 72 - 1, NEMA* | |
