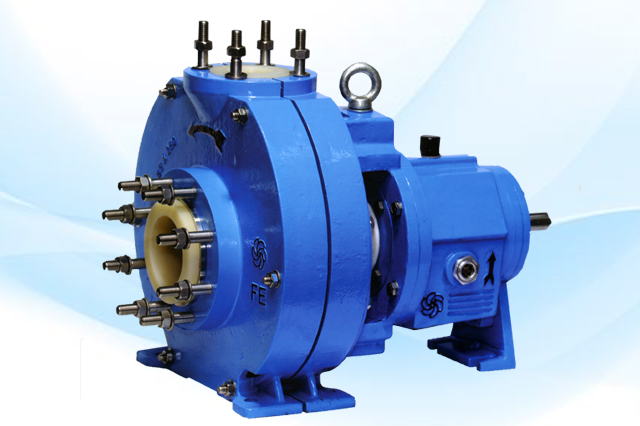

PVDF Chemical Process Pumps

We are Authorized Dealer, Supplier of PVDF Chemical Pumps and our setup is situated in Pune, Maharashtra, India. Majorly we serve customers from African Countries like Egypt, Algeria, Ghana, Ethiopia, Nigeria, Congo, Uganda, Kenya, Sudan, Tanzania, Zambia, Angola, Algeria, Zimbabwe, Namibia, Mozambique, Gulf Contries like South Africa, Saudi Arabia, Doha, Bahrain, Kuwait, Oman, Iran, Turkey, Yemen, Lebanon, Mauritius & Asian Countries like Sri Lanka, Bangladesh.

The fluorinated polymers are widely appreciated for their remarkable chemical inertness and their excellent resistance to aging. Polyvinylidene Fluoride (PVDF) offers the Specific advantage of easy processing in accordance with all the conventional methods used in plastic industry. PVDF, polymerized, according to its own special process, offer a high degree of crystallinity to that by other processes, resulting among other things in superior thermo-mechanical properties.

The intrinsic technical superiority is one of the reasons for which PVDF has achieved success on the world market for more than 25 years.

But nothing is possible without a genuine quality assurance policy which Fluorolined Equipment follows with their continuous efforts for Total Quality Management over their products & services


Technical Data
Operaing Frequency 50Hz 60Hz
Capacity [Q] up to 500 m3/hr ( 2200 US gpm) 3100 US gpm (700 m3/hr)
Head [H] up to 120mts (394 ft) 492 ft (150mts)
Motor Power [P] up to 150HP ( 115 kW) 170HP (130 kW)
Viscosity up to 150 mPas (cP)
Suction Lift up to 8 m ( 26 ft ) with priming chamber *
Maximum Working Pressure 12 bar (175 psi)
Maximum Specific Gravity [SG] 1.8 - 3
Minimum Continuous Flow 3 m3/hr (13 US gpm)
Maximum Temperature PVDF:120°C(250°F)
Suction & Delivery Connection ANSI B16.5 - Class 150 , DIN ND 10
Shaft Seal Single (TB / TBR), DROTT, IMS, DMS & SS
Bearing Rolling Element Bearing
Lubrication Grease / Oil
Motor Compatibility IS 1231, IEC 72 - 1, NEMA*

Examples of Services

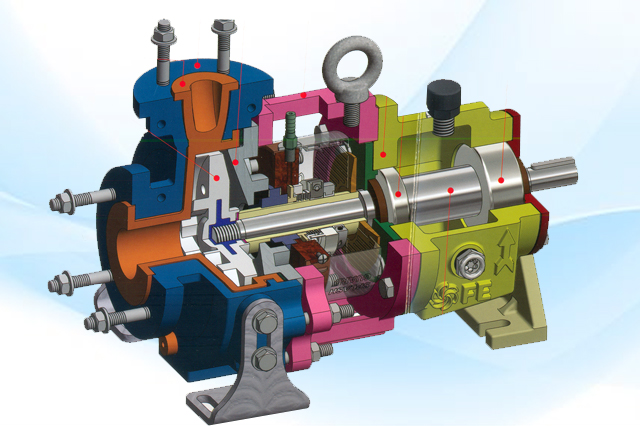

plc-pumps

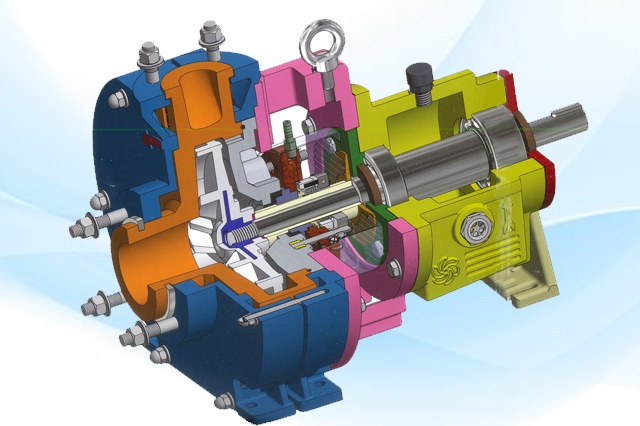

plc-pumps1

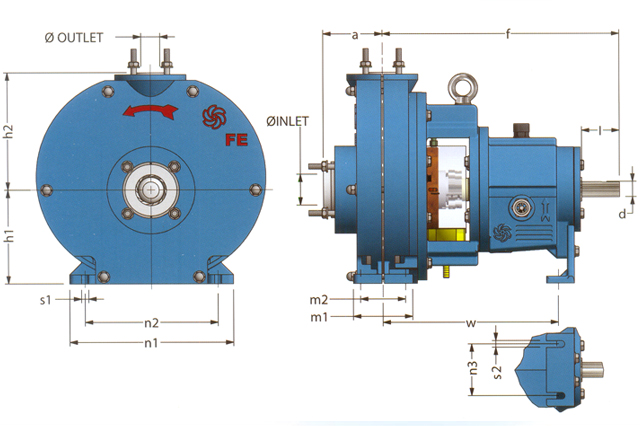

pumps-dimension
