PP PUMPS

Industries Overview

We are Authorized Dealer, Supplier of Polypropylene CHEMICAL PROCESS PUMPS ( PP Pumps ) and our setup is situated in Pune, Maharashtra, India.

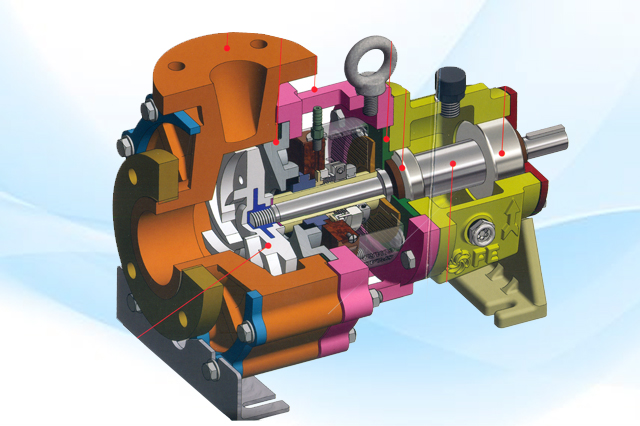

PLM series pumps are energy efficient complete ISO 2858 standard design, injection moulded, horizontal, back-pull out single stage end suction centrifugal pumps to provide optimum pumping solutions with reduced life cycle costs for all chemical applications.

Technical Data

Operaing Frequency	50Hz	60Hz
Capacity [Q] up to	500 m3/hr ( 2200 US gpm)	3100 US gpm (700 m3/hr)
Head [H] up to	120mts (394 ft)	492 ft (150mts)
Motor Power [P] up to	150HP ( 115 kW)	170HP (130 kW)
Viscosity up to	150 mPas (cP)
Suction Lift up to	8 m ( 26 ft ) with priming chamber *
Maximum Working Pressure	12 bar (175 psi)
Maximum Specific Gravity [SG]	1.8 - 3
Minimum Continuous Flow	3 m3/hr (13 US gpm)
Maximum Temperature	PP - H : 82⁰C (180⁰F), GFRPP : 90⁰C (194⁰F)
Suction & Delivery Connection	ANSI B16.5 - Class 150 , DIN ND 10
Shaft Seal	Single (TB / TBR), DROTT, IMS, DMS & SS
Bearing	Rolling Element Bearing
Lubrication	Grease / Oil
Motor Compatibility	IS 1231, IEC 72 - 1, NEMA*

Enquiry Now

Polypropylene PumpsManufacturer in India, Polypropylene PumpsDealer, Suppliers and Exporters in India

Industries Overview

Smart Tek Log is a leading polypropylene pumps manufacturer in India.We are also a top dealer, supplier and exporter of polypropylene pumps in Pune, Maharashtra, India. Being a leader in the industry, we are engaged in offering a superior range of polypropylene pumps in India. Our range of polypropylene pumps are designed by our professionals. At Smart TekLog polypropylene pumps are manufactured using high grade components and latest technology by our team of technical experts who have in-depth understanding of each and every component and the functional features of these polypropylene pumps. Our polypropylene pumps in India are widely appreciated for corrosion resistant nature and excellent finish.

Moreover, the polypropylene pump is tested on various parameters to ensure that the product delivered by Smart Tek Log is of high quality. These polypropylene pumps are available with open and closed type impellers. You can avail these polypropylene pumps from Smart Tek Logwith great specifications and at reasonable price in India.

Smart Tek Log is an authorized dealer, supplier and exporter of polypropylene pumps in Pune,Nasik, Mumbai, Nagpur, Aurangabad,Maharashtra, India. We supply and export our polypropylene pumps in and around Pune,Nasik, Mumbai, Nagpur, Aurangabad,Maharashtra, India.

Features

Low maintenance due to minimum components.
Low power consumption
High Capacity
Leak proof and also run dry without damage in rotating parts.
Enable effective solutions
Controls Air Pollution
Compact design

Application

Electroplating
Fertilizers plants
Paper and pulp industries
Phosphoric acid plants
HCL acid handling
Pharmaceutical industries
Corrosive liquid handling
Dyes and pigment industries
Thermal and atomic power plants
Effluent treatment handling
Scrubbing process

Technical Data

Operaing Frequency	50Hz	60Hz
Capacity [Q] up to	500 m3/hr ( 2200 US gpm)	3100 US gpm (700 m3/hr)
Head [H] up to	120mts (394 ft)	492 ft (150mts)
Motor Power [P] up to	150HP ( 115 kW)	170HP (130 kW)
Viscosity up to	150 mPas (cP)
Suction Lift up to	8 m ( 26 ft ) with priming chamber *
Maximum Working Pressure	12 bar (175 psi)
Maximum Specific Gravity [SG]	1.8 - 3
Minimum Continuous Flow	3 m3/hr (13 US gpm)
Maximum Temperature	PVDF:120°C(250°F)
Suction & Delivery Connection	ANSI B16.5 - Class 150 , DIN ND 10
Shaft Seal	Single (TB / TBR), DROTT, IMS, DMS & SS
Bearing	Rolling Element Bearing
Lubrication	Grease / Oil
Motor Compatibility	IS 1231, IEC 72 - 1, NEMA*
