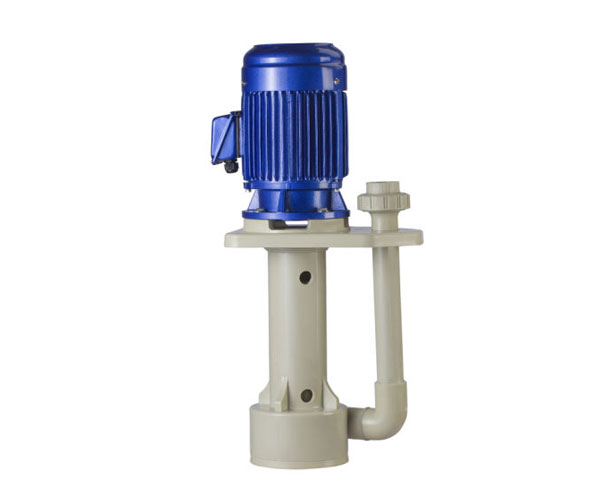

Vertical Chemical Pumps

Vertical chemical pump in Nashik

Vertical Chemical Pump Manufacturers and Suppliers in Nashik

Vertical Chemical Pump manufacturers, suppliers, dealers, exporters in Nashik, Maharashtra, India by Smart Tek Log for use in sump and cooling water services, cryogenic temperatures, applications requiring vertical lift, and applications requiring low net positive suction head. Our vertical Chemical pumps have been designed for use with sewage, chemicals, water, and other fluids. In order effectively every pumping service in the industry, vertical chemical pumps are available in a wide range of hydraulic conditions and are highly efficient.

Enquiry Now

Industrial Vertical Centrifugal Pump

Brand EBARA
Power Source Electric
Frequency 50Hz
Degree Of Protection IP55
Insulation Class Class F
Country of Origin Made in India
Series MD-MMD

Features

  • Available with a variety of unique sealing mechanisms.
  • It achieves 80% efficiency thanks to an impeller that is hydraulically balanced to prevent axial thrusts against the seal.
  • Made of cast iron for the MMD and stainless steel AISI 304 for the MD.
  • Design with back pull-out.

Key Specifications

  • Significant capacity
  • Maximum head per cycle
  • Easy to maintain
  • More Durable Design
  • Highly trustworthy

Temperature of the liquid

  • -5°C to +90°C (MD)
  • -5°C to +110°C (MD version H-HS-HW-HSW)
  • -5°C to +120°C (MD version E)
  • -10°C to +90°C (MMD)

Other Specifications

  • MEI > 0,7 (MD)
  • MEI > 0,4 (MMD)

More Specifications

  • IE2 high energy-efficiency motors starting from 0.75 kW and IE3 starting from 7.5kW (MMD)
  • IE3 high energy-efficiency motors starting from 5.5 kW (MD)
  • Three-phase voltage 230/400V ±10% up to 4 kW included
  • Three-phase voltage 400/690V ±10% from 5.5 kW and higher
  • Protection to be arranged by the user for three-phase version

Material

  • Cast iron pump body and support: section that comes into contact with liquid is made of AISI 304 steel (MD), while the rest is composed of AISI 420 steel (MMD).
  • Mechanical seals are constructed of SiC/SiC/NBR (MMD) and Carbon/Ceramic/NBR (MD).
  • Cast iron and AISI 304 steel were used to make the impeller.

A vertical centrifugal pump's low NPSH (Net Positive Suction Head) is one of its main advantages. Therefore, it's primarily utilized by: Industries that need cooling water applications for cryogenic temperatures to move abrasive slurries and numerous more industrial uses, including those in the mining and chemical sectors.
